This installation instructions will show you how to install a Android navigation screen for Mercedes C Class W204 2011-2013, upgrade the original small screen to 10.25” big touch screen.

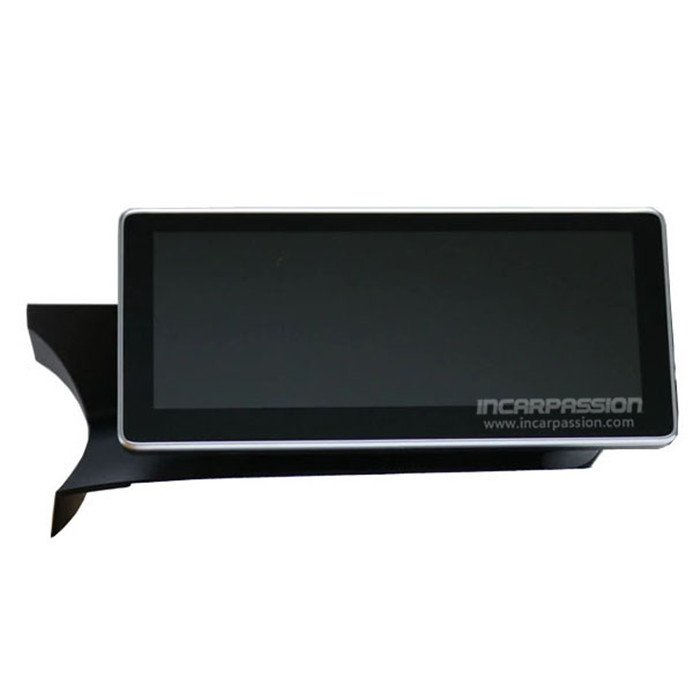

Product link: 10.25” MBUX UI Android 8.1 GPS Navigation System for Mercedes C Class W204 2011-2013
1, Original screen

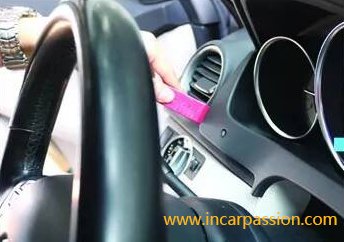

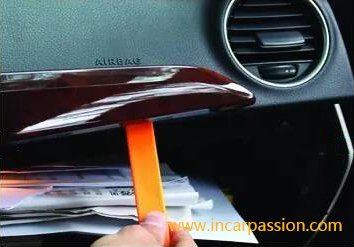

2, pry out air vent panel
3, Use slot screwdriver to move
the buckle to middle forward
4, Use slot screwdriver to move
the buckle to middle forward

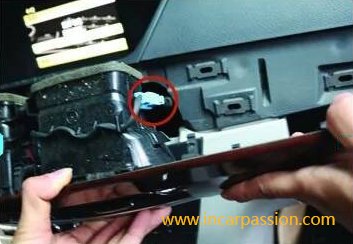

5, Pull out the air vent hardness

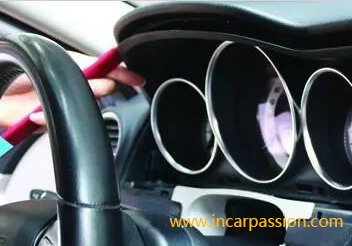

6, Pry out screen panel
7, Pry out screen panel
8, Pry out screen panel
9, Pry out screen panel
10, remove the screen frame
11, remove the screen fixing screws
12, pry out original screen
13, pry out original screen
14, pull out screen hardness

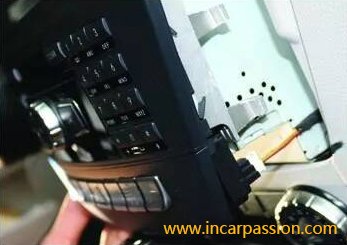

15, remove the radio screws, push downward, take out radio system
16, Pull out the hardness of
radio panel
17, pull out the hardness behind the radio
18, convert to original screen
hardness
19, convert to original
radio hardness
20, after install
